Powering Your New Home: A Complete Ontario Guide to Electrical Installation, Codes, and Costs
The electrical system in a new home is more than wires hidden behind walls—it’s the foundation of safety, efficiency, and comfort for years to come. From planning circuits to meeting Ontario’s strict electrical codes, every detail matters in creating a home that’s both functional and future-ready.
At B-Line Electrical Services, founded by Jason Butler, we bring 18 years of expertise in residential and commercial installations to homeowners across Woodstock and Renfrew County. Our mission is simple: quality over quantity, ensuring each project is built to the highest standard. Whether it’s preparing for EV charging, integrating smart home technology, or ensuring compliance with a 200 Amp service, we provide guidance and hands-on service tailored to your vision. Learn more about our story and values on our About Us page.
This guide will walk you through everything you need to know about electrical installation for new homes in Ontario, including:
The essential stages of installation, from planning and rough-in to final inspection.
Key Ontario Electrical Code requirements, including ESA compliance and safety standards.
Budgeting tips and cost benchmarks for materials and skilled labour in your area.
Future-proofing strategies such as solar-ready wiring, surge protection, and backup power solutions.
By the end, you’ll have the knowledge to confidently oversee your project, secure accurate quotes, and ensure your new home’s electrical system is both compliant and built to last. If you’re ready to discuss your project, connect with us through our Contact page.
What Are the Key Stages in a New Home’s Electrical Installation?
The electrical installation process for new homes involves careful planning, meticulous rough-in wiring, precise trim-out of devices, and a final inspection to guarantee a safe, code-compliant power distribution system. Each phase is vital for delivering reliable electricity and preventing potential hazards.
How Is Electrical Load Calculated and Designed for New Home Builds?
Calculating the electrical load is essential for determining the total power demand by summing up the requirements for each individual circuit. This ensures a balanced distribution across the panel breakers and prevents any risk of overloads.
Assess the power needs of major appliances like your oven, HVAC system, and dryer, along with lighting loads.
Apply diversity factors as outlined by the Canadian Electrical Code (CEC) to account for simultaneous usage.
Strategically allocate circuits, including those for general lighting, small appliances, dedicated appliances, and any specialty circuits.
Once the load is calculated, a detailed load-centre schedule is created, specifying the amperage and breaker type for each circuit. Accurate load design not only promotes energy efficiency but also positions your home perfectly for future expansions, such as EV charging or solar integration, seamlessly leading into the physical wiring stages that follow.

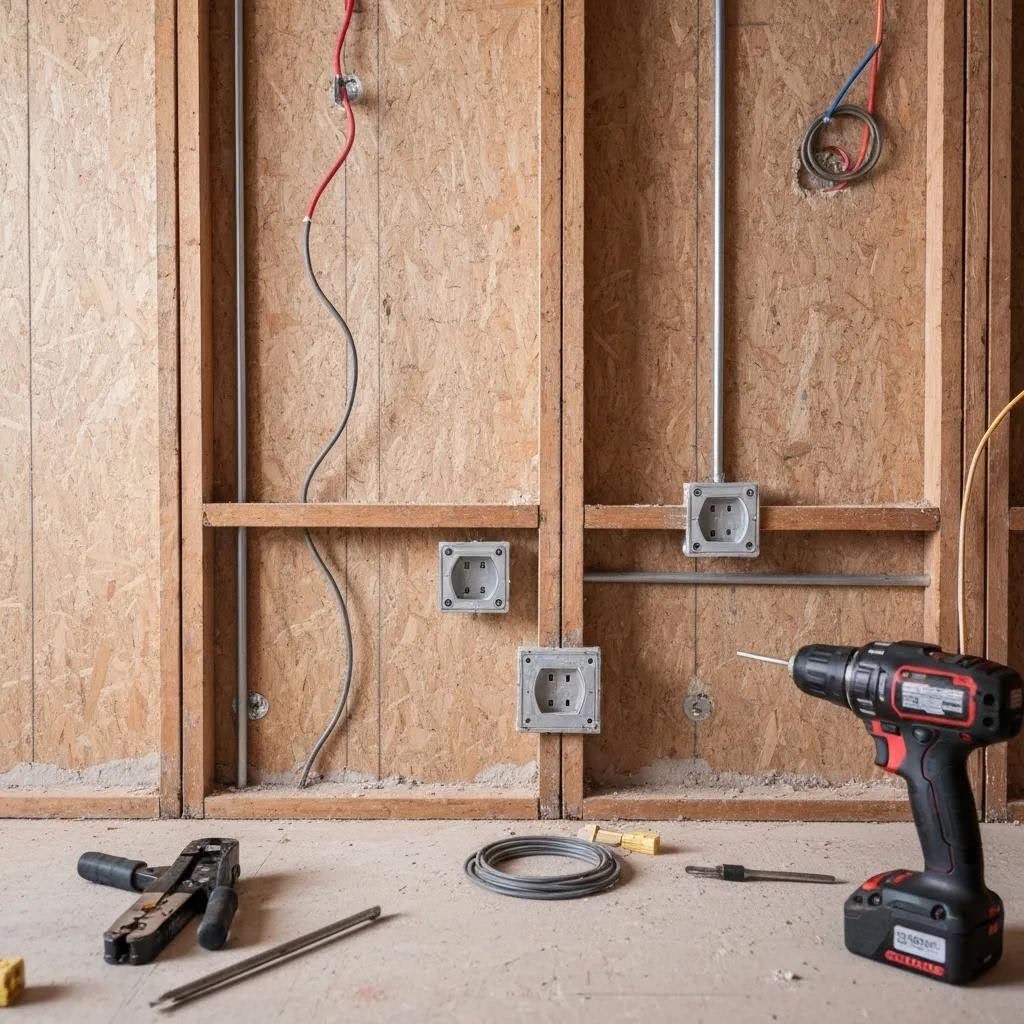

What Happens During the Electrical Rough-In Phase?
During the electrical rough-in phase, electricians expertly install all the necessary wiring, conduit, and outlet boxes through the framing members before the drywall is put in place, effectively establishing the home’s foundational power infrastructure.
Route branch circuits from the main electrical panel to their designated junction boxes, using non-metallic (NM) cable or conduit as appropriate for the building type.
Securely mount electrical boxes for outlets, switches, and fixtures at standardized heights and precise locations.
Install essential grounding and bonding conductors, ensuring proper connection to water pipes and grounding rods at the service entrance.
Clearly label all cable ends to facilitate easy identification during the subsequent trim-out phase.
Completing a thorough rough-in ensures that all circuits are perfectly prepared for device installation and helps avoid costly rework once the walls are closed up, setting the stage for the next phase of mounting devices and connecting fixtures.
How Are Outlets, Switches, and Fixtures Installed in the Trim-Out Phase?
The trim-out phase is where the pre-installed wiring is connected to receptacles, switches, light fixtures, and various specialty devices, transforming the rough wiring into fully operational circuits.
Securely fasten outlets and switches into their respective boxes, meticulously connecting the hot, neutral, and ground conductors with the correct torque.
Mount lighting fixtures and ceiling fans, carefully verifying their support methods and the load ratings of the electrical boxes.
Install Ground Fault Circuit Interrupter (GFCI) outlets in kitchens, bathrooms, and outdoor locations to provide crucial shock protection.
Fit Arc Fault Circuit Interrupter (AFCI) breakers or outlets on circuits serving bedrooms and living areas to protect against dangerous arc faults.
By expertly completing all device connections and confirming correct orientation, the trim-out phase readies the entire electrical system for the crucial ESA inspection and energization, ensuring the safe and reliable operation of every outlet and fixture.
What Does the Final Electrical Inspection and Power Connection Involve?
The final inspection, conducted by the Electrical Safety Authority (ESA), is a critical step to confirm that all wiring and installed devices fully comply with the Ontario Electrical Safety Code (OESC) and the CEC before permanent power is connected.
Thoroughly review all permits, panel labels, and the load-centre schedule for absolute accuracy.
Perform essential continuity and insulation resistance tests on every circuit.
Test all protective devices, including GFCIs, AFCIs, surge suppressors, and verify the effectiveness of the grounding system.
Inspect bonding connections, box fill capacities, clearances around electrical panels, and the interconnection of smoke and CO alarms.
Once the ESA issues a compliance certificate, the local utility company will proceed with connecting the main service, officially energizing the panel. Successfully passing this inspection marks the culmination of the installation process, transitioning your project towards occupancy readiness and ensuring you understand all mandatory code requirements specific to Ontario.
What Are the Ontario Electrical Code Requirements for New Home Construction?
Ontario’s Electrical Safety Code, which is based on the Canadian Electrical Code with specific provincial amendments, establishes the essential standards designed to protect occupants and property from electrical hazards in all new residential constructions.
How Does the Canadian Electrical Code (CEC) Apply to Residential Wiring in Ontario?
The CEC Part I lays out the national standards for wiring, covering crucial aspects such as conductor sizes, overcurrent protection, circuit design, and grounding methods. Ontario enforces these standards through its OESC amendments. Electrical installers must adhere to these rules by:
Using CEC-approved cable types, such as Type NM-B or UF, in all specified locations.
Strictly following conductor ampacity charts for both copper and aluminum wiring.
Implementing accurate box fill calculations and adhering to cable support regulations.
Complying with all rules for bonding water pipes, service grounding, and proper panel placement.
These requirements ensure a consistent level of safety across Canada, while the OESC introduces specific local clarifications regarding territorial licensing, permit application processes, and inspection protocols that installers must follow before energization.
Why Is a 200 Amp Electrical Service Mandatory for New Homes in Ontario?
A 200 Amp service panel is now standard for new homes in Ontario, providing ample capacity to power modern households and accommodate future energy demands, such as electric vehicle chargers, solar inverters, or workshop equipment.
A 200 Amp service at 240 V delivers 48 kVA of available load, capable of supporting multiple high-draw appliances operating simultaneously.
The ample space for up to 40 circuit breakers allows for dedicated lines for essential appliances, HVAC systems, EV charging, and other specialized loads.
This future-proof installation effectively avoids the need for costly panel upgrades in the years to come.
Mandating 200 Amp service aligns with current energy consumption trends and significantly reduces electrical strain, ensuring new homes are well-prepared for evolving technologies without compromising safety.
What Are the Requirements for Smoke and Carbon Monoxide Alarms in New Builds?
Interconnected smoke and carbon monoxide (CO) alarms are a critical life-safety feature, ensuring that all devices sound simultaneously when a hazard is detected, providing occupants with crucial early warning.
Install photoelectric smoke alarms on every level of the home and inside each bedroom.
Place CO alarms outside sleeping areas and within five metres of bedroom entrances.
Ensure all alarms are hardwired with a reliable battery backup and interconnected according to OESC regulations.
By integrating these essential alarms directly into the home’s electrical system, builders create a cohesive and robust safety network that offers superior protection compared to standalone battery-operated units, significantly enhancing occupant safety.
What Are the EV Charging Station Rough-In Requirements for New Homes?
Ontario now mandates a dedicated rough-in circuit for future Level 2 EV charging, designed to simplify and streamline the installation of vehicle charging equipment.
Reserve a 40-Amp, 240 V circuit from the main panel to a conveniently accessible location in the garage.
Run 8 AWG copper conductors within conduit or NM cable, strictly following OESC guidelines.
Ensure an empty knockout is available in the panel and install a clearly labeled circuit breaker space.
Maintain the minimum required clearance and workspace around the panel and at the intended charger mounting site.
Establishing an EV rough-in circuit during the initial build phase significantly reduces the time and cost associated with retrofit work, allowing homeowners to seamlessly adopt electric vehicles and future-proof their garage space for this growing technology.
How Much Does New Home Electrical Wiring Cost in Renfrew County and Woodstock, Ontario?
The cost of electrical wiring for a new home is influenced by factors such as the complexity of the labour, the quality of materials used, and prevailing regional market rates. The typical ranges provided here serve as flexible benchmarks for your planning.
What Factors Influence the Cost of Electrical Installation in New Homes?
Several key variables contribute to the final price of a home wiring project:
The overall size of the home and the number of circuits required directly impact the quantity of cable needed and the number of breakers.
Architectural complexities, such as vaulted ceilings or multi-story layouts, can increase the overall labour hours.
The quality and quantity of fixtures chosen, including custom lighting, dimmers, and smart switches, will add to the component costs.
Specialty systems, such as EV rough-ins, solar-ready panels, or backup generators, necessitate dedicated circuits and specific equipment, increasing the overall cost.
Understanding these influencing factors will help you align your design aspirations with realistic budget expectations before you solicit formal quotations.
What Is the Average Cost per Square Foot for New Home Electrical Wiring in Ontario?
Across the province, the average cost for basic electrical wiring typically falls between $4 and $9 per square foot. This translates to the following estimated costs:
These estimates generally include the main electrical panel, all branch circuits, outlets, switches, and basic lighting fixtures. Any additional features or the selection of premium finishes will proportionally adjust the per-square-foot rate upwards.
How Can You Get a Transparent Quote from a Licensed Electrician Like B-Line Electric?
Requesting a clear and comprehensive estimate involves a straightforward three-step process:
Provide your builder’s plans or blueprints as early as possible, allowing the electrician to perform precise load calculations.
Discuss your preferences for fixture brands, any special equipment you plan to install, and potential future expansions like EV charging, solar power, or backup generators.
Insist on a detailed, line-item proposal that clearly breaks down all labour, materials, permit fees, and inspection charges.
By comparing detailed bids rather than relying on general estimates, you can ensure fair pricing and avoid unexpected costs during the construction process, fostering a trustworthy partnership with your electrical contractor.
How Can You Future-Proof Your New Home’s Electrical System?
A future-proof electrical system is designed with scalable capacity, integrated smart controls, and provisions for renewable energy technologies, ensuring it can adapt seamlessly as your household’s needs evolve over time.
What Are the Benefits of Integrating Smart Home Technology in New Construction?
Wiring for smart home technology supports advanced automation, efficient energy monitoring, and convenient remote control, significantly enhancing both comfort and energy efficiency.
Smart lighting circuits allow for custom scene presets and occupancy sensing, effectively reducing wasted energy consumption.
Connected thermostats integrate seamlessly with your HVAC system for adaptive climate control and substantial cost savings.
Programmable outlets offer surge protection and scheduling capabilities to safeguard your valuable electronics.
Embedding network cables and Power-over-Ethernet (PoE) drops during the construction phase minimizes future retrofit expenses, empowering homeowners with intelligent control from the very first day.
How Do You Prepare Your Home for EV Charging Infrastructure?
Installing dedicated circuits and conduit specifically for Level 2 EV charging ensures safe, efficient vehicle charging without placing undue strain on shared wiring systems.
Allocate a 40 Amp, 240 V breaker slot with oversized wiring capacity to accommodate future upgrades.
Position conduit drops strategically near ideal locations for charger mounting, ensuring proper clearance and accessibility.
Consider including a load-management panel to effectively balance EV charging demands with other high-draw household appliances.
Pre-planning for EV infrastructure enables a straightforward installation of charging equipment when you’re ready, eliminating the need for invasive drilling or extensive rewiring later on.
What Does a Solar-Ready Electrical System Include for New Homes?
Provisions for solar-ready wiring significantly streamline the future addition of solar panels and battery storage systems.
Reserve conduit and knockout space above the main electrical panel for inverter connections.
Allocate additional breaker spaces specifically rated for inverters and install oversized grounding rods for renewable energy grounding requirements.
Install junction boxes and designated pathways on the roof for the routing of photovoltaic (PV) cables.
By incorporating these essential elements early in the construction process, homeowners can substantially reduce the complexity and cost associated with connecting to grid-tied and battery storage systems when solar integration becomes a priority.
When Should You Consider Installing a Generator or Backup Power System?
A backup generator system provides essential protection for critical loads during power outages, significantly enhancing the resilience of vital systems like refrigeration, sump pumps, and essential medical equipment.
For regions prone to severe weather, it’s advisable to install an automatic transfer switch for seamless power transitions during outages.
Carefully match the generator’s capacity to the essential circuits you wish to power, ensuring full compliance with OESC transfer switch requirements.
Consider standby systems fueled by natural gas or propane for extended operational runtime without the need for frequent refueling.
Early planning allows for the integrated installation of necessary wiring and transfer switches before interior finishes are applied, effectively avoiding costly retrofits and ensuring your home remains powered and comfortable without interruption.
Why Is Hiring a Licensed and Experienced Electrician Crucial for New Home Electrical Installation?
Professional installation by a licensed electrician guarantees compliance with all Ontario regulations, significantly reduces safety risks, and provides invaluable peace of mind through expert workmanship and adherence to the highest standards.
What Qualifications Should You Look for in a Residential Electrician in Woodstock and Renfrew County?
When selecting a residential electrician, it’s important to look for professionals who demonstrate the following qualifications:
Possession of a Master Electrician or Journeyperson certification, as required under Ontario’s Apprenticeship Act.
Current ESA licensing and comprehensive insurance coverage to provide liability protection.
Proven local experience specifically with new home construction projects, supported by verifiable project references.
Thorough familiarity with the latest Canadian Electrical Code (CEC) and Ontario Electrical Safety Code (OESC) amendments, including requirements for EV charging and solar installations.
These credentials serve as a strong affirmation of the electrician’s knowledge, accountability, and unwavering commitment to adhering to the province’s stringent safety standards.
How Does B-Line Electric Ensure Quality and Safety in New Home Wiring?
B-Line Electric combines over 18 years of extensive industry expertise with a family-owned dedication to superior craftsmanship and strict code compliance.
We conduct comprehensive load calculations and meticulous blueprint reviews before commencing any wiring work.
Our certified journeyperson electricians meticulously follow standardized checklists for both rough-in and trim-out inspections.
We maintain direct coordination with ESA inspectors to ensure a streamlined process for permit approvals and final sign-off.
This highly detailed and systematic approach guarantees reliable system performance, minimizes the likelihood of callbacks, and reinforces your complete confidence in every electrical connection made.
What Are the Benefits of Choosing a Local Electrical Contractor for Your New Build?
Partnering with a local electrical contractor offers distinct advantages, including enhanced responsiveness, a deeper understanding of regional code nuances, and a more personalized service experience.
Local electricians possess intimate knowledge of municipal inspection processes and specific scheduling protocols.
Proximity to your build site reduces travel costs for the contractor and allows for quicker response times for any necessary adjustments or emergency service calls.
Community-focused businesses prioritize their reputation and customer satisfaction above all else.
By choosing a local expert, you gain access to specialized knowledge regarding construction conditions in Renfrew County and Woodstock, ensuring a smoother and more efficient project delivery.
What Visual Guides and Checklists Help Simplify New Home Electrical Installation?
Visual aids and detailed checklists are invaluable tools for clarifying complex wiring tasks, promoting consistent code compliance, and streamlining coordination among all involved contractors.
How Do Electrical Blueprints and Layouts Guide the Installation Process?
Electrical blueprints serve as detailed guides, illustrating the precise locations of panels, the planned routes for circuits, the placement of devices, and the critical load-centre schedules, all of which inform every phase of the installation process.
Floor plans clearly marked with symbols for outlets, switches, and fixtures ensure their correct positioning on-site.
Panel schedules provide essential details on breaker assignments and circuit identifiers, crucial for testing and troubleshooting.
Conduit diagrams clearly show pathway dimensions, necessary bends, and specific support requirements.
Reviewing these detailed diagrams before the rough-in phase commences ensures that on-site crews are perfectly aligned with the design intent, preventing errors like misdrilled holes or wiring conflicts that could potentially delay drywall installation.
How Can Infographics and Diagrams Clarify Ontario Electrical Code Requirements?
Infographics are highly effective at distilling complex code rules into easily digestible visual summaries, highlighting mandatory clearances, required device counts, and specific panel specifications.
Circuit count diagrams visually represent the minimum branch circuit requirements for kitchens and laundry rooms.
Panel clearance charts clearly illustrate the necessary working space around all electrical equipment.
EV rough-in visuals provide clear guidance on conduit paths and appropriate breaker sizing.
These graphics present dense regulatory information in an accessible and understandable format, assisting builders, electricians, and inspectors in confirming compliance at a glance.
How Does B-Line Electric Comply with Ontario’s Electrical Safety Authority (ESA) Regulations?
B-Line Electric ensures that every new home wiring project is meticulously aligned with ESA permit processes, inspection protocols, and the latest code updates, guaranteeing full regulatory compliance and comprehensive homeowner protection.
What Is the Role of the ESA in New Home Electrical Inspections?
The Electrical Safety Authority plays a crucial role by issuing necessary permits, conducting both rough-in and final inspections, rigorously enforcing the Ontario Electrical Safety Code, and certifying all installations before power is energized, thereby guaranteeing safe wiring practices.
How Does B-Line Electric Ensure Adherence to ESA and CEC Standards?
B-Line Electric diligently secures all required permits, schedules ESA inspections at each critical installation milestone, performs internal quality audits that align with specific CEC sections, and consistently updates its practices with every code revision to maintain unwavering compliance.
Where Can Homeowners Find Official ESA and CEC Resources?
Homeowners can access authoritative guidance on residential wiring standards by consulting the official Electrical Safety Authority website for OESC bulletins and by referring to the CSA Group’s publications for the Canadian Electrical Code Part I.
Backed by meticulous planning, unwavering adherence to code, and a profound commitment to excellence, B-Line Electric expertly transforms your electrical installation from initial concept to certified completion—powering your new home safely, efficiently, and with an eye firmly on the future.
What Are the Most Common Questions About New Home Electrical Installation in Ontario?
Homeowners frequently inquire about costs, specific code mandates, the installation process, and required service capacities when undertaking electrical work for new construction projects in Ontario.
1. How Much Does It Cost to Wire a New House in Ontario?
Wiring a new house in Ontario typically costs between $4 and $9 per square foot, translating to an estimated range of $6,000 to $22,500 for homes between 1,500 and 2,500 sq ft. This cost can vary based on the complexity of the layout, the quality of fixtures selected, and the inclusion of specialty systems like EV circuits.
2. What Are the Electrical Requirements for New Homes in Ontario?
New homes built in Ontario must adhere to the Canadian Electrical Code and the Ontario Electrical Safety Code. Key requirements include a 200 Amp service panel, interconnected smoke and carbon monoxide alarms, and a dedicated circuit rough-in for EV charging.
3. What Is the Step-by-Step Process for Electrical Installation in New Construction?
The electrical installation process for new construction unfolds in four distinct phases: initial planning and load design, the rough-in wiring of walls and ceilings, the trim-out phase for device and fixture installation, and finally, the ESA inspection and testing before the permanent power connection.
4. Do New Homes Need 200 Amp Service in Ontario?
Yes, Ontario mandates a minimum 200 Amp electrical service for all new residential constructions. This ensures adequate capacity to meet the demands of modern households and accommodate future expansions, such as electric vehicle chargers.
5. What Is the Canadian Electrical Code for Residential Wiring?
The Canadian Electrical Code Part I serves as the national standard that governs essential aspects of residential wiring, including conductor types, overcurrent protection, grounding practices, and installation methods. Ontario enforces these standards through provincial amendments and oversight from the ESA.
Conclusion
Your new home deserves more than just a standard electrical setup—it requires a system that’s safe, efficient, and designed to meet both today’s needs and tomorrow’s innovations. From complying with Ontario Electrical Code to planning for smart technology and future energy solutions, every step of the process benefits from the expertise of a licensed professional.
At B-Line Electrical Services, we take pride in delivering quality-driven electrical installations for homeowners in Woodstock, Renfrew County, and across Ontario. With over 18 years of hands-on experience, Jason Butler and his team bring a personal commitment to safety, precision, and customer satisfaction. Whether you’re starting new construction, upgrading panels, or preparing your home for EV charging, we’ll guide you through every stage with care and professionalism.
Ready to bring your new home to life with expert electrical installation? Contact us today at +1 519-532-1181 or email [email protected] to schedule a consultation. Let’s ensure your home’s electrical system is built to the highest standards—safe, reliable, and future-ready.
